BUSINESS
SANSOW KIKOW
Since 1965, we have been builting only these equipment and especially in full automation systems. We have been supplying it to more than 20 countries 80 cities world wide. Line up of our products have variousmodels from “HANDY TYPE” TO “ON TABLE TYPE” and”FULL AUTOMATIC SYSTEM”. And almostof them have been built by “Order assembling” style. Since user’s requests and target materials are multifarious, it is by no means easy settling the equipment to the safisfaction of them.
We made therefore, major parts as our standard, and according to the user’s request, select suitable parts and build up as a equipment. By this way, we can offer them in short time and low cost with full satisfaction of our users.satisfy by fixed product model. In opposite side, if it is Full order made style, the cost and delivery time will be unacceptable conditions.This system is only way to solve these conflicted conditions we think.
Target fluids are fluid chemicals, plastics, with multiple components and heavy duty grease, popular adhesives regardless of volume, viscosities, type of dispensing Multiple components material, such as Epoxies, Polyurethanes, polyesters. Single component material, This category has far too many materials to mention in detail but includes such commonly known products as; RTV silicones rubber, oil, grease, solvents, glues, putties, sealants, caulking etc Of course, all of our products can be offered in any unit by user’s request. We make full test by using User’s actual works and materials before our shipping so that enables installation in short time.
Our products are not only fluid application equipment but also expanded to items which related to the applications. Only SANSOW offers such a wide range of equipment in the world. Our related products is as follows.
VACUUM EQUIPMENT
Vacuum chamber, Vacuum pump unit, Vacuum control parts and Vacuum gauge etc.FURNACE and OVEN.
Heating device for Preheating or Curing. Batch type box oven or Tunnel type continuous furnace.PALETTE
For mass production line of small parts. Simlifying and standardizing production processes or quality control.SOLVENT CLEANING ITEMS
Flushing unit for two-component materials at the end of the dispensing. Solvent sink to cleaning parts with ventilation booth.
[About downloading PDF data]
On this page, we introduce our products in detail in PDF format. Please note that PDF data can only be downloaded by members, so after contacting us, please enter the ID and password that we will send to you and download the data. Click here for inquiries regarding membership registration >>
MONO-FUNCTION EQUIPMENT
METERING &MIXING UNIT
SSD Series

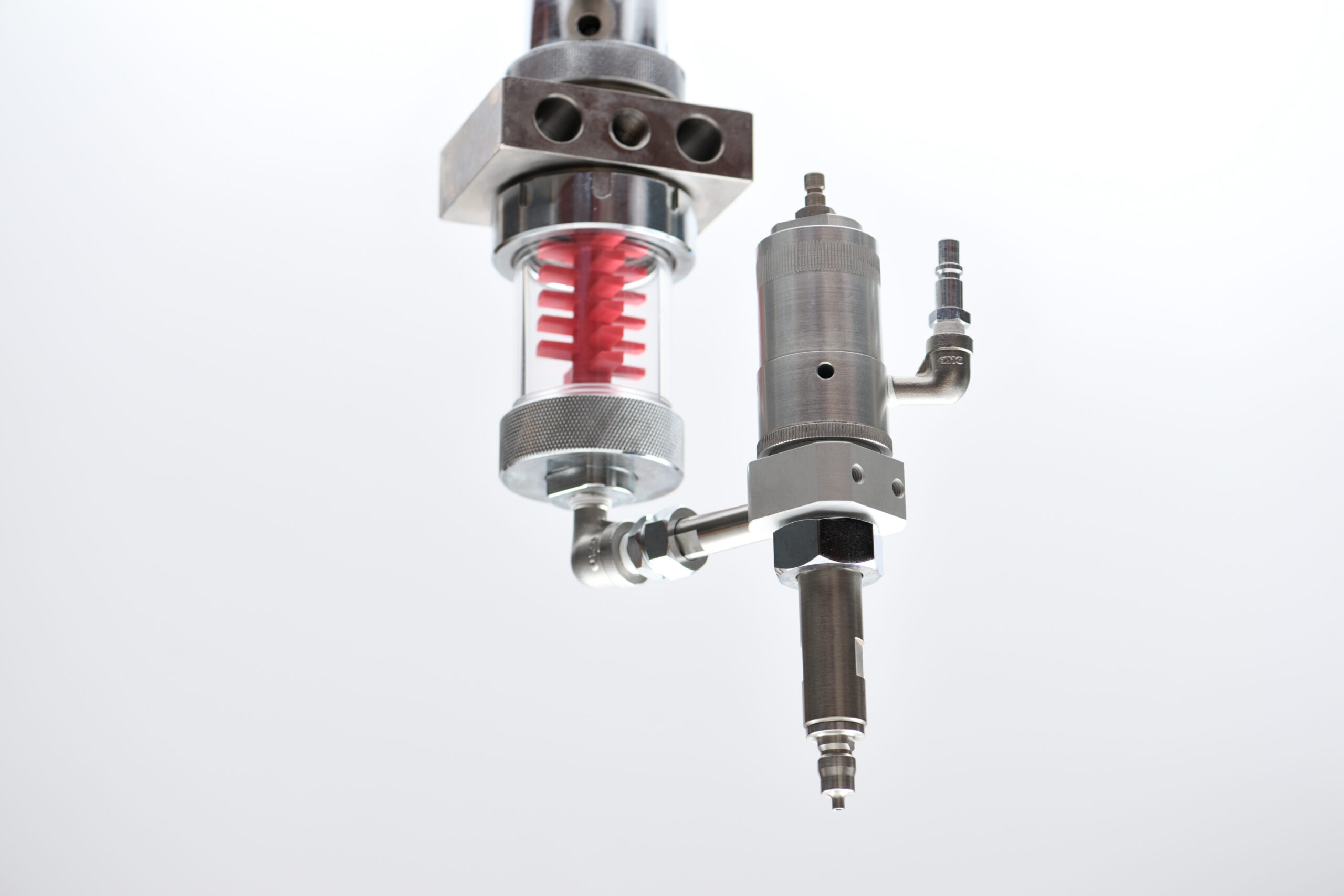

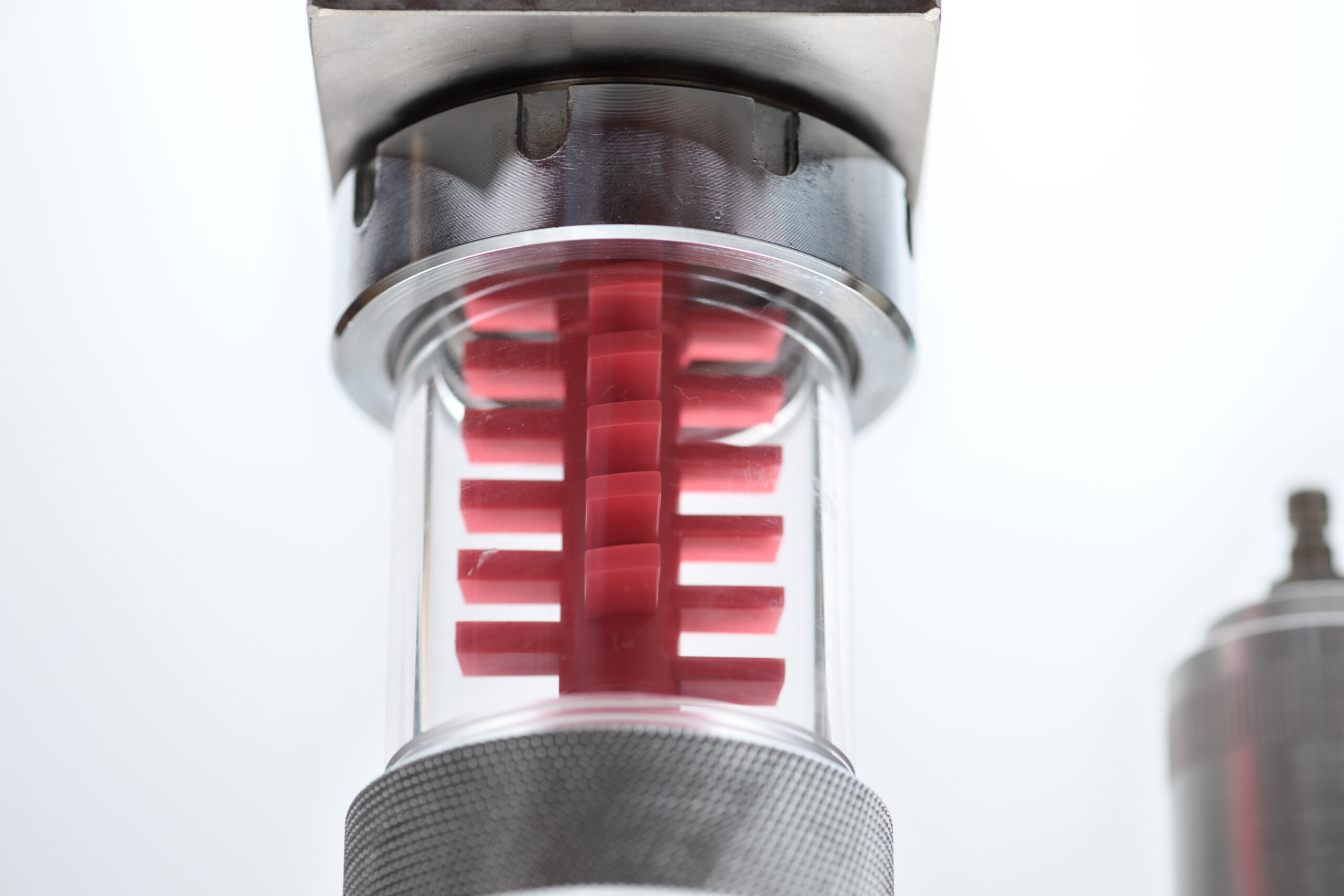

Metering, mixing, measuring and direct dispensing unit.Specially designed for small shot size as little as 0.8cc or as much as 10cc.Suitable model for the material which have short pot life like polyurethane compound.
MEASURING PUMP UNIT
MSD Series

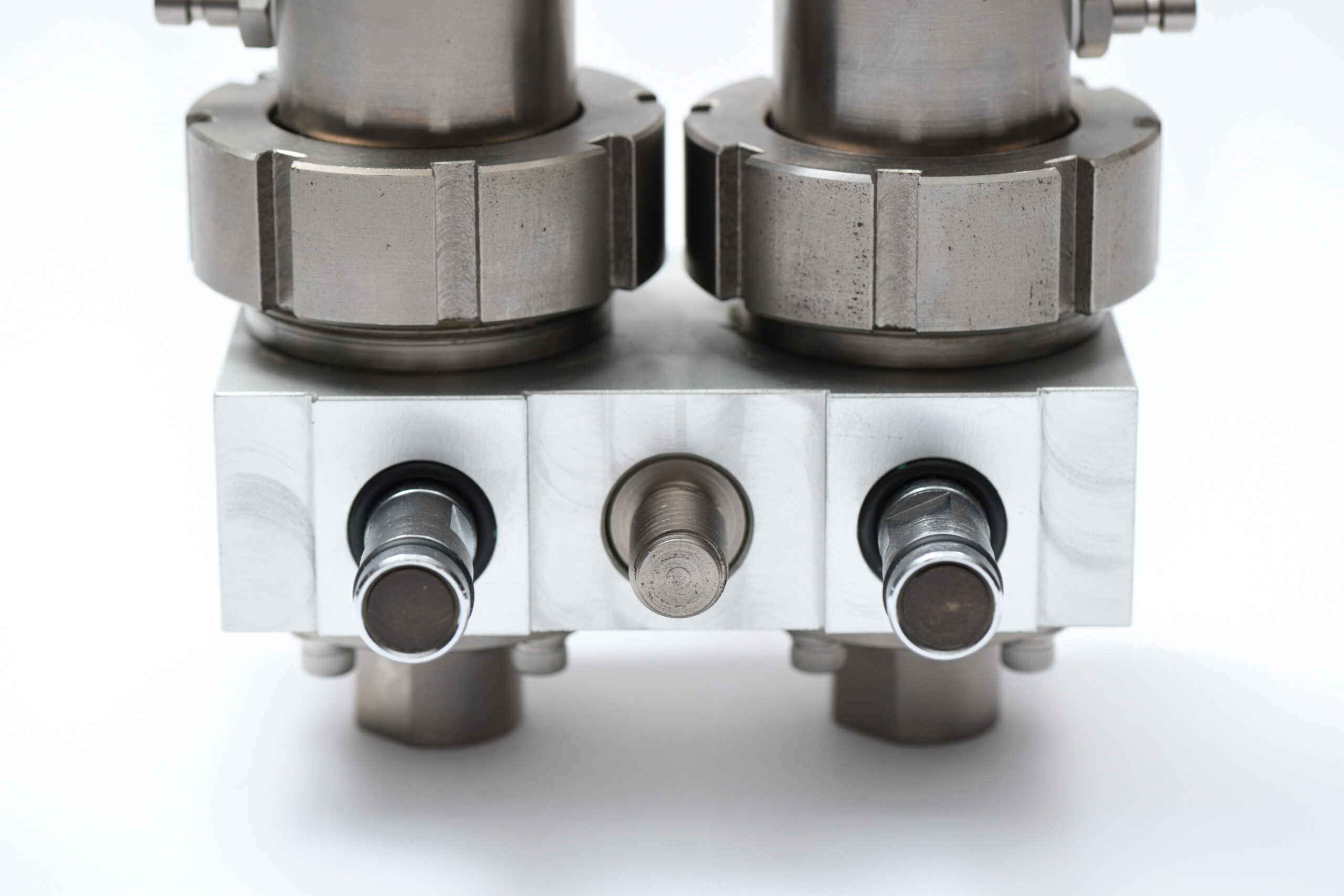

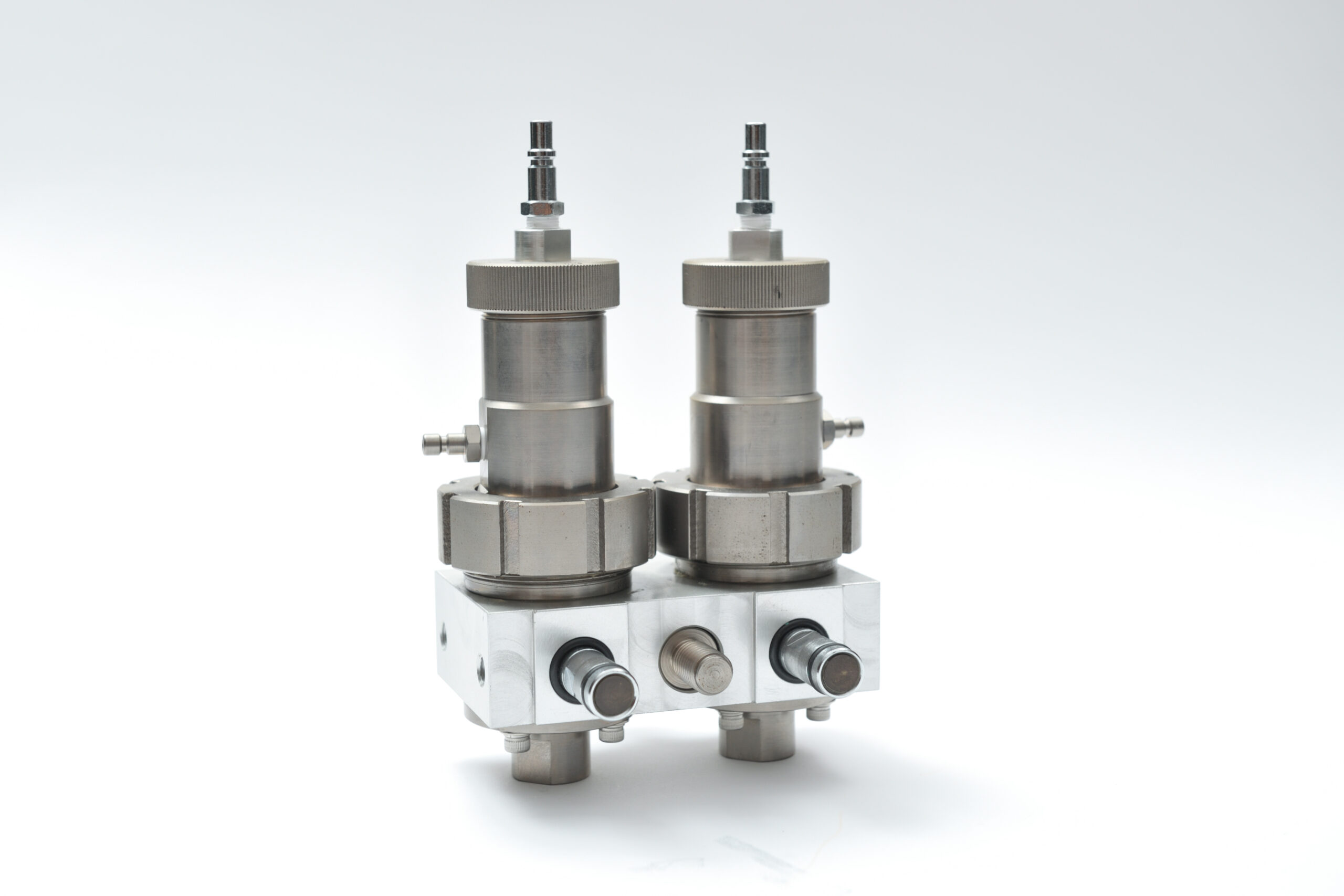

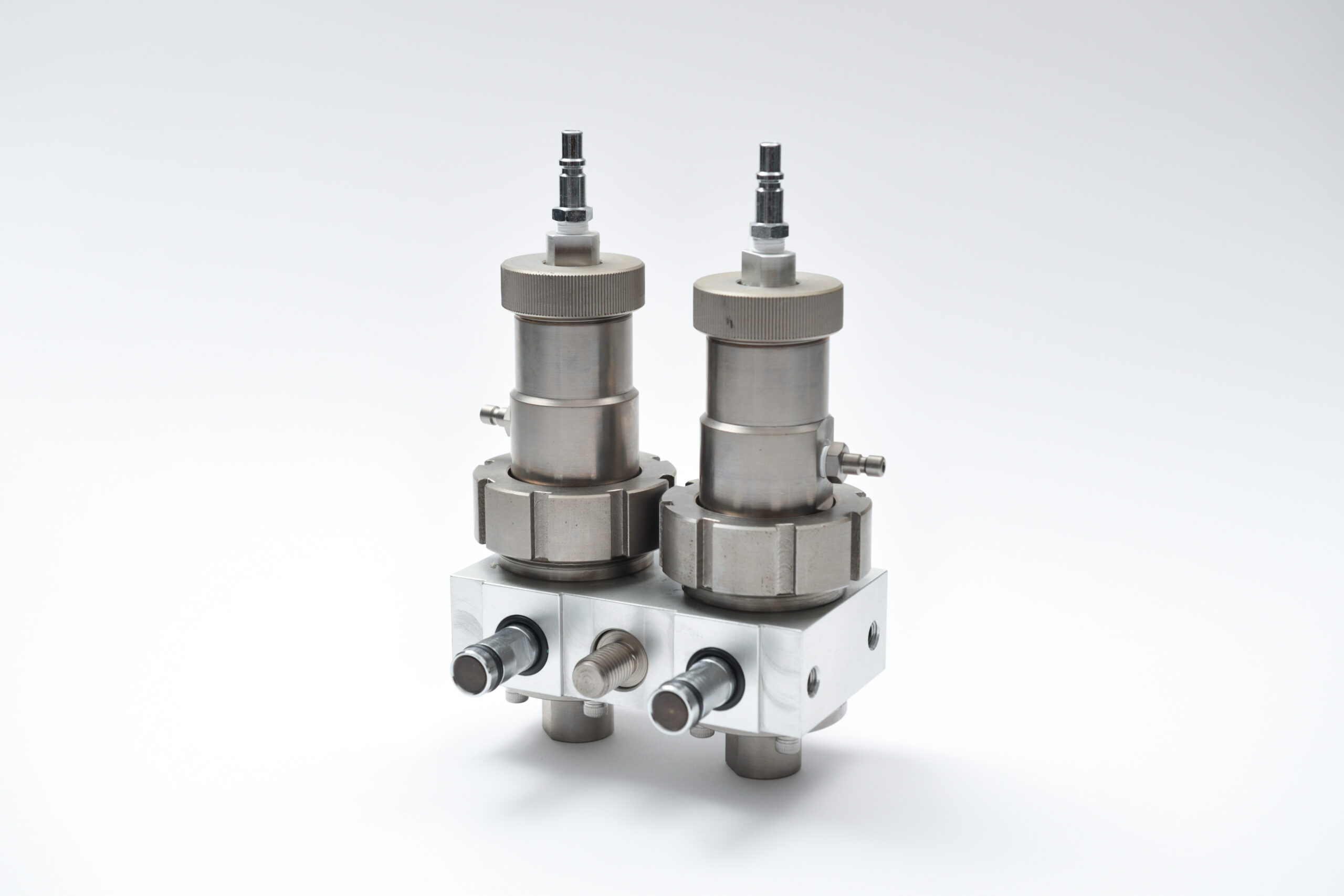

Typical shot dispensing machine for single or two component material.The positive dispenses as little as 0.01cc or as much as 150cc in a single shot.It is usually used shot dispensing with Epoxies, Silicones and two-component compounds.
METERING & MIXING UNIT
TDS Series
Popular dispenser of two-component compound such as Epoxies, silicones, and polyurethanes with low to medium viscosity widely.Accurate metering and mixing enable potting process with high reliability.
VACUUM BLENDER
VBS Serie
Mixing materials in the container under vacuum atmosphere.It is available not only for material with medium viscosity but also with high viscous like paste.The waving pressure and flushing program are included.The material treated by this blender can be used in vacuum potting.
MATERIAL TANK UNIT
MT SERIES

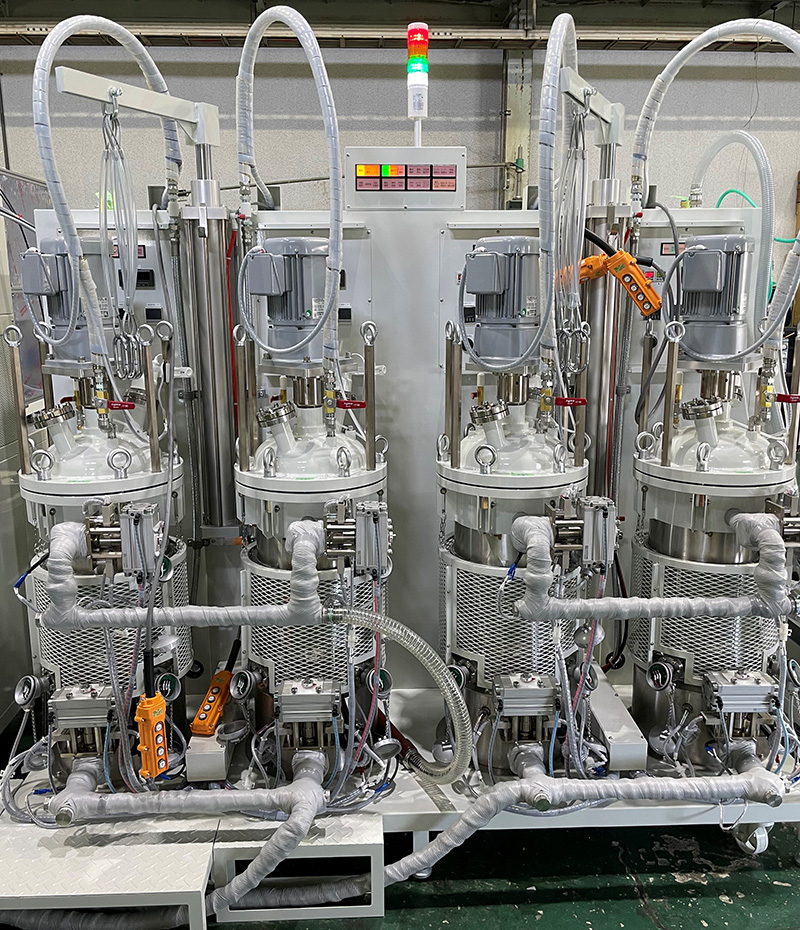

Liquid material tanks storing, Preheating, agitating and pressurizing for dispensing out.Material touching area of the tank is made by stainless steel.Pressurizing by air and transfers out liquids.3 to 180 litters model is available.
VACUUM CHAMBER UNIT
VCU Series
Vacuum chambers using for dispensing liquid chemicals in reduced pressure.Manual, semi-automatic or automatic operation types are available.The chamber body is made by aluminum alloy.
EQUIPMENT WITH MULTIPLE FUNCTION
AUTOMATIC STANDARD POTTING UNIT
VES Series
By joining Tank unit, Metering and Mixing, and Potting conveyor the automatic potting line is completed works are loaded on a palette and in potting process it is treated as one unit. The potting conveyor removes palette to next potting position intermittently after finishing potting. If you select the straight type potting conveyor, you may get automatic potting conveyor line with high production capacity. At the potting conveyor has plural nozzles, you may select measuring pump devices.
FULL AUTOMATIC STANDARD POTTING SYSTEM
VES Series
Furthermore joining tunnel type Preheating and Curing furnaces to the potting conveyor unit it becomes automatic potting conveyor line. A palette is sent out from preheating transferred ontob potting conveyor and potted works on the palette. After all works are potted the palette send in the curing furnace automatically and heated according to the preset temperature profile during transferring in the furnace The palette finally send out from the furnace with well heated and cured works.

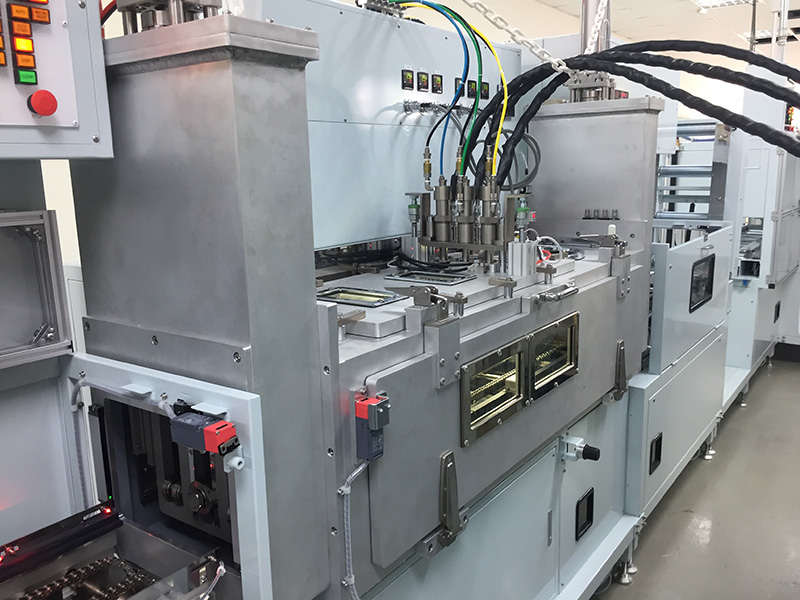

VACUUM POTTING UNIT
VPS Series

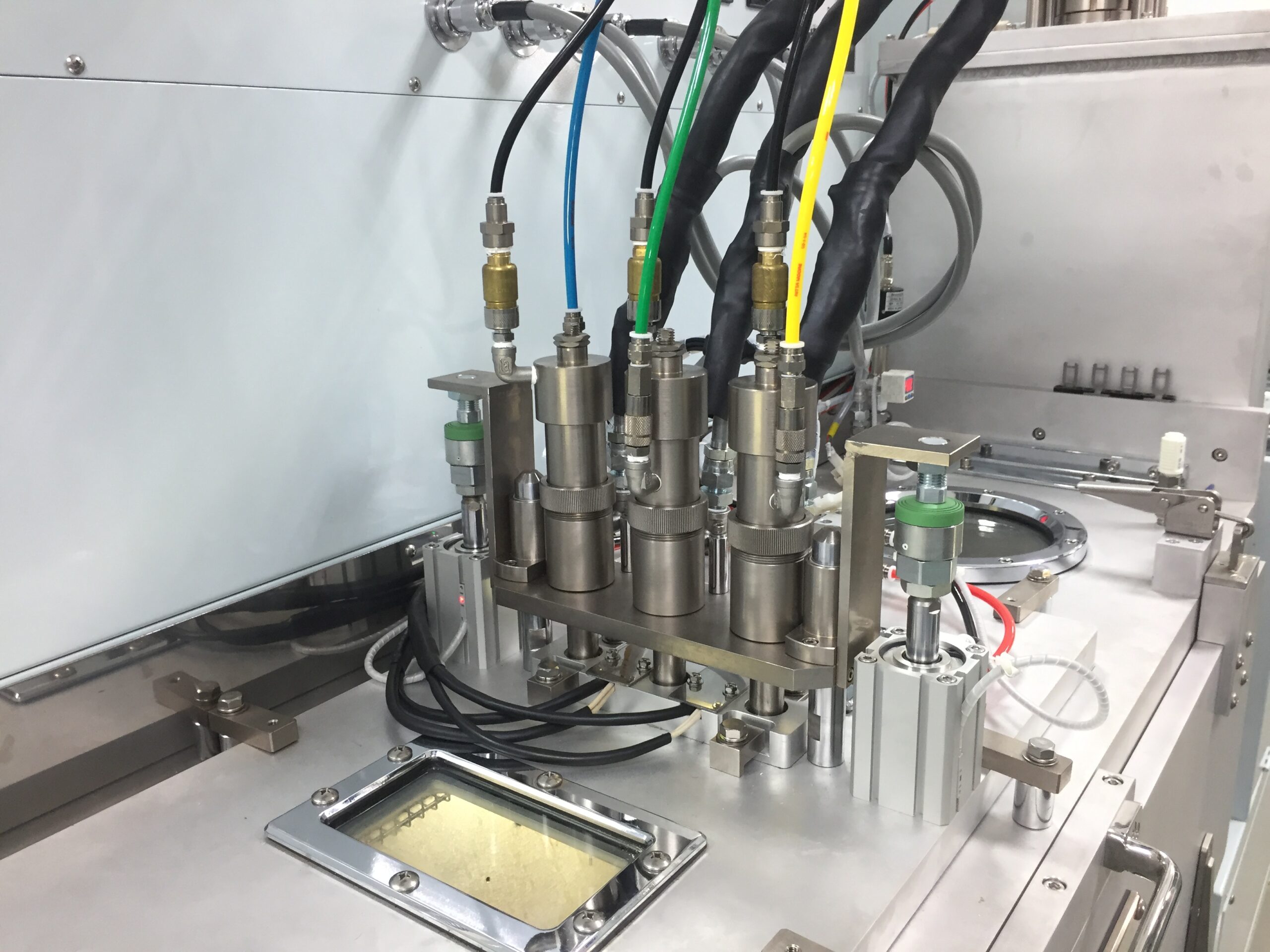

By joining Tank unit, Metering and Mixing, and Vacuum chamber unit, an automatic vacuum potting line is completed. Works are loaded on a palette and in potting process it is treated as one unit. If selecting a small number of nozzles direct potting by TDS or SSD is recommended. But in the case selecting potting with many nozzles, indirect potting by MSD measuring pump system is better matching. In the vacuum chamber the palette is transferred in each preset distance and works on the palette potted step by step.

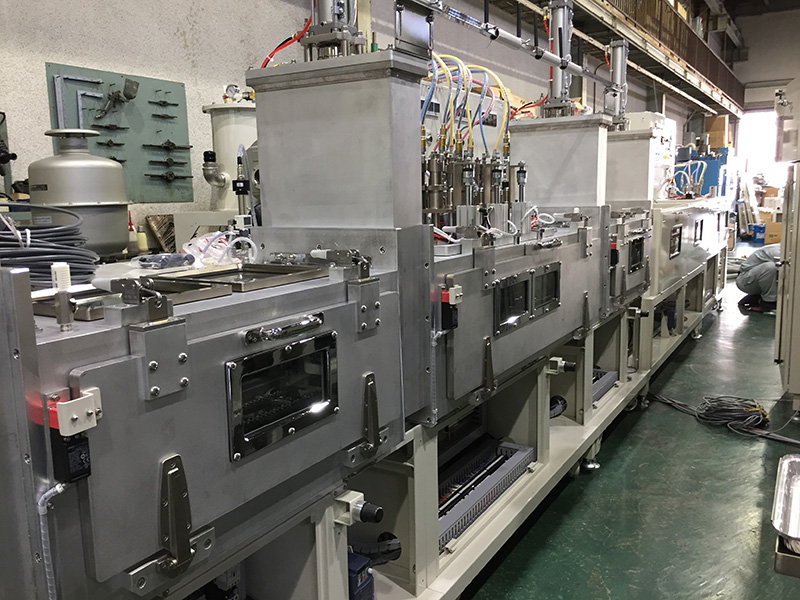

VACUUM ENCAPSULATION SYSTEM
VPS Series
Furthermore by joining preheating and curing furnace of tunnel type and stock conveyor to both ends of the conveyors, the line becomes as an automatic vacuum encaosulation system. Inthe vacuum potting processes there are a lot of control points. And by the automates these controls, it simplifies and standardizes operation processes and production controls. It also rejects operation errors occurred by human operation.
VACUUM POTTING MACHINEFOR LABORATORY
VBS / VC Series
This is a equipment specially designed for small size or irregular production of vacuum potting. It has the vacuum blender and the turntable type vacuum chamber on one base. About the dispensing unit you may select pressurized tank for continuous flowing or shot dispensing by measuring pump.
